Visualizing Complex Electron Wavefunction Using High-Resolution Attosecond Technology
Share

Visualizing Complex Electron Wavefunction Using High-Resolution Attosecond Technology

Wed, Jan 11, 2023
Visualizing Complex Electron Wavefunction Using High-Resolution Attosecond Technology
Share

Researchers successfully record the phase distribution of electrons, unveiling the detailed structure of its complex wavefunction

The structure, dynamics, and functions of materials are predominantly determined by their constituent electrons. Owing to their quantum nature, electrons have “wave”-like characteristics. However, measuring the phase of an electron and its complex electron wavefunction is challenging. Using state-of-the-art attosecond technology, researchers at Waseda University and National Research Council of Canada have now successfully recorded the phase distribution of electrons ejected from a neon atom, allowing a complete, detailed visualization of the complex electron wavefunction.

The early 20th century saw the advent of quantum mechanics to describe the properties of small particles, such as electrons or atoms. Schrödinger’s equation in quantum mechanics can successfully predict the electronic structure of atoms or molecules. However, the “duality” of matter, referring to the dual “particle” and “wave” nature of electrons, remained a controversial issue. Physicists use a complex wavefunction to represent the wave nature of an electron. “Complex” numbers are those that have both “real” and “imaginary” parts—the ratio of which is referred to as the “phase”. However, all directly measurable quantities must be “real”. This leads to the following challenge: when the electron hits a detector, the “complex” phase information of the wavefunction disappears, leaving only the square of the amplitude of the wavefunction (a “real” value) to be recorded. This means that electrons are detected only as particles, which makes it difficult to explain their dual properties in atoms.

The ensuing century witnessed a new, evolving era of physics, namely, attosecond physics. The attosecond is a very short time scale, a billionth of a billionth of a second. “Attosecond physics opens a way to measure the phase of electrons. Achieving attosecond time-resolution, electron dynamics can be observed while freezing molecular motion,” explains Professor Hiromichi Niikura from the Department of Applied Physics, Waseda University, Japan, who, along with Professor D. M. Villeneuve—a principal research scientist at the Joint Attosecond Science Laboratory, National Research Council, and adjunct professor at University of Ottawa—pioneered the field of attosecond physics. Niikura and Villeneuve had previously developed a breakthrough method, attosecond re-collision, and also demonstrated the imaging of a molecular orbital or electron wavefunction in a molecule.

In a recent study published in Volume 106 Issue 6 (2022; page 063513) of Physical Review A on 23 December, 2022, these researchers employed another approach involving attosecond physics, using an attosecond laser pulse, or high-harmonic generation, to visualize a complex wavefunction. The attosecond laser pulse consists of coherent light with a wavelength much shorter than ultra-violet, referred to as extreme ultra-violet (EUV) light. When this pulse irradiates a gas, an electron is ejected. This process is referred to as photoionization. The attosecond pulse consists of a set of “harmonics” or different colors of light. By controlling the generation of the attosecond pulse, the researchers isolated two photoionization pathways—one consisting of a particular harmonic, and the other consisting of another harmonic along with an infrared pulse—to ionize neon. The electron wavefunctions produced by both pathways can interfere with each other. The interference pattern varies with the attosecond delay between the harmonics and the IR pulses. The team determined the phase and amplitude distributions of the photoelectron from the interference pattern and visualized its complex wavefunction. As the energy resolution is smaller than the bandwidth of the attosecond pulses, the researchers were successful in visualizing the detailed wavefunction structure. Furthermore, the researchers developed a method of disentangling the measured wavefunction into wavefunctions that are produced by individual ionization pathways.

Now that the researchers have successfully visualized the complex wavefunction of an electron—something that cannot be seen through conventional photoelectron spectroscopy—there’s so much more they can achieve! Niikura says, “Nowadays, photoelectron spectroscopy using EUV and X-ray has become a basic tool for investigating structures and dynamics of materials. The present method will provide a way to elucidate the quantum properties of electrons.” Visualizing the complete, detailed, complex electron wavefunction will be of significant impact in the fields of nanotechnology, chemistry, and molecular biology.

Reference

Authors: Takashi Nakajima1, Tasuku Shinoda1, D. M. Villeneuve2 and Hiromichi Niikura1
Title of original paper: High-resolution attosecond imaging of an atomic electron wavefunction in momentum space
Journal: Physical Review A
DOI: 10.1103/PhysRevA.106.063513
Latest Article Publication Date: 23 December, 2022
Affiliations: 1Department of Applied Physics, Waseda University, Japan
2Joint Attosecond Science Laboratory, National Research Council and University of Ottawa, Ontario, Canada

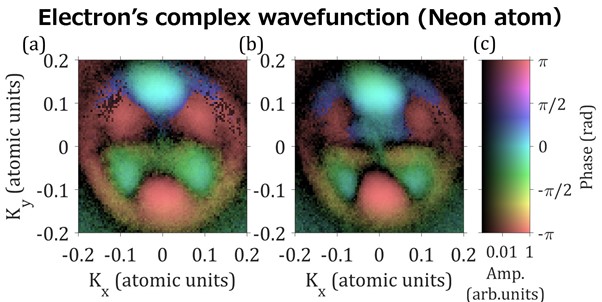

Image title: Visualizing complex photoelectron wavefunctions using attosecond imaging technology
Image caption: Researchers measure the phase and amplitude of the complex electron wavefunctions (a,b), represented by color (or hue) for phase and brightness (or value) for amplitude (plotted in logarithmic scale), in the hue-saturation-value (HSV) color map, as shown in (c).
Image credits: Hiromichi Niikura from Waseda University
License type: Original content

About Professor Hiromichi Niikura from Waseda University

Hiromichi Niikura is a Professor at the Department of Applied Physics, Waseda University. He obtained his bachelors from Kyoto Institute of Technology, masters from Graduate School of Kyoto Institute of Technology, and Ph.D. from Graduate University for Advanced Studies, Institute for Molecular Science, Japan. His research focuses on atomic, molecular, and optical (AMO) physics. He has worked at National Research Council of Canada (2000-2009), where he conducted a pioneering work in attosecond physics, a new emerging field. Niikura was awarded the prestigious Japan Society for Promotion of Science (JSPS) award in 2012. Professor Niikura can be contacted at [email protected].
